X-600M™ | Web-Enabled I/O Controller

X-600M™ | Web-Enabled I/O Controller

Remotely control and monitor up to 32 expansion modules and 128 ControlByWeb products via web browser for a tailored solution to your unique applications!

  • Overview

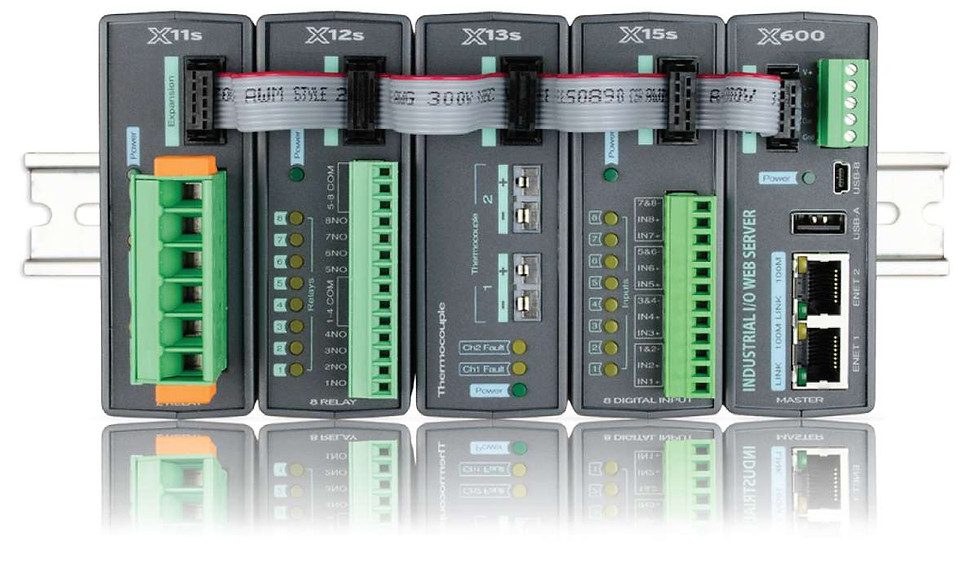

    The X-600 Modular Series is the ultimate drop-in solution for monitoring and control. Start with the X-600M™ master controller and add I/O by connecting expansion modules for a solution that is tailored to your specific application. Expansion modules include relays, digital inputs, analog inputs, thermocouples and more. This series has many powerful features and will be an ideal solution for many applications.

    The X-600M is a web-enabled I/O controller that performs control, logic, and monitoring functions similar to that of a Programmable Logic Controller (PLC). However, unlike a PLC, the X-600M is designed for web based applications from the ground up. The X-600M can be setup, controlled, and monitored using its built-in web server and a standard web browser. The setup web pages are intuitive and easy to use and do not require special programming skills. No add-on software is required.

    The X-600M functions as a powerful master controller for other ControlByWeb™ modules. Its ribbon-cable expansion bus connector allows for up to 64 expansion modules to be connected directly to the X-600M*. It can also control any of our other stand-alone ControlByWeb devices over an Ethernet network - Up to 128 devices!

    Many powerful features are included in this new series; such as customizable Email notifications, scheduling, logging and graphing of logged data, custom Lua scripts, and much more.

    Expansion modules for the X-600M are available for adding relays, digital inputs, thermocouples, and more.

    *Power injector may be required for configurations larger than 16 modules.

  • Features

    • Built with:
      • Industrial grade components
      • High-reliability SLC flash
      • Transient protection
      • Watchdog timers
      • Voltage supervisor circuitry, etc.
    • Powerful built-in web server
    • Easily configurable web pages
    • Logging & automatic graphing of log files
    • Built-In Ethernet switch with two Ethernet connections
    • Expansion bus - Direct connection with up to 64 modules*
    • Communicates with all ControlByWeb modules such as, WebRelay, WebRelay-Quad, Analog Module, X-300, etc.
    • Up to 1,024 I/O points
    • Supports USB WiFi adapters & USB flash drives
    • Built-in 1-wire bus for temp/humidity sensors
    • Send custom email alerts using encrypted email servers (Gmail, Yahoo, etc.)
    • Create logic scripts or full programs using Lua
    • Advanced, full-calendar scheduling
    • Protocols supported: HTTP, HTTPS, SSL, SMTP, Modbus/TCP, Remote Services™ server and client, & more.
    • Email alerts based on user-defined conditions
    • Static or DHCP IP address configuration
    • XML, Modbus/TCP, & SNMP interface options
    • Field updatable
    • Removable 5-pin terminal connector
    • Rugged DIN-Rail/wall-mountable enclosure
  • Data Sheet

    Download X-600 Series Data Sheet
